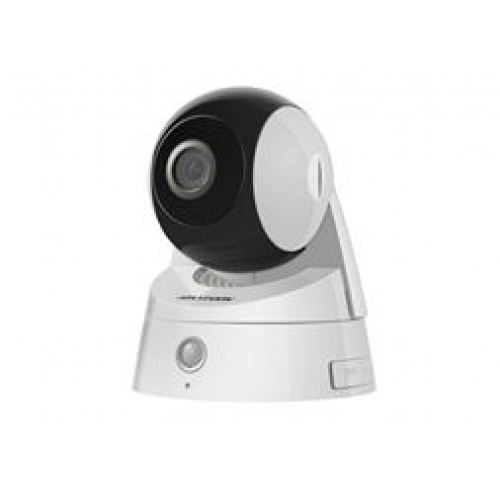

HIK VISION DS-2CD2Q10FD-I(W)
DS-2CD2Q10FD-I(W)
Camera
Image Sensor: 1/4" progressive scan CMOS
Signal System: PAL/NTSC
Min. Illumination: 0.01Lux @(F1.2,AGC ON) ,0 Lux with IR
0.028Lux @(F2.0,AGC ON) ,0 Lux with IR
Shutter time: 1/3 s to 1/100,000 s
Lens: 4mm@ F2.0, Angle of view: 59° (2.8mm, 6mm optioanl)
Lens Mount: M12
Adjustment Range: Pan:0° - 355°, Tilt: -20° - 90°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: Digital WDR
Digital noise reduction: 3D DNR
Compression Standard
Video Compression: H.264/M-JPEG
Bit Rate: 32 Kbps~8Mbps
Audio Compression: G.711/G.726/MP2L2
Dual Stream: Yes
Max. Image Resolution: 1280×720
Frame Rate: 50 Hz: 25 fps (1280 × 720), 25 fps (704 × 576), 25 fps (640 × 480)
60 Hz: 30 fps (1280 × 720), 30 fps (704 × 576), 30 fps (640 × 480)
Image Settings: Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC: Yes, zone configurable
ROI: Support
Network
Network Storage: NAS
Alarm Trigger: Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Security: User Authentication, Watermark, IP address filtering, anonymous access
System Compatibility: ONVIF, PSIA, CGI, ISAPI
Interface
Audio Input: 1 built-in microphone
Audio Output: 1-ch 3.5 mm audio interface, 1 built-in speaker
Communication Interface: 1 RJ45 10M / 100M ethernet interface
Alarm Input: 1
Alarm Output: 1
On-board storage: Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB
Reset Button: Yes
Wi-Fi Specification (-W)
Wireless Standards: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: 20/40MHz Support
Modulation Mode: 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmit Power: 11b: 17±1.5dBm @ 11Mbps
11g: 14±1.5dBm @ 54Mbps
11n: 12.5±1.5dBm
Receive Sensitivity: 11b: -90dBm @ 11Mbps (Typical)
11g: -75dBm @ 54Mpbs (Typical)
11n: -74dBm (Typical)
Transmission Rate: 11b: 11Mbps
11g: 54Mbps
11n: up to 150Mbps
Wireless Range: 50m(depend on environment)
General
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Consumption: Max. 7W
IR Range: 10 meters
PIR: Angle: 80°
Range: 10m
Dimensions: 100.8×124mm
Weight: 300g
