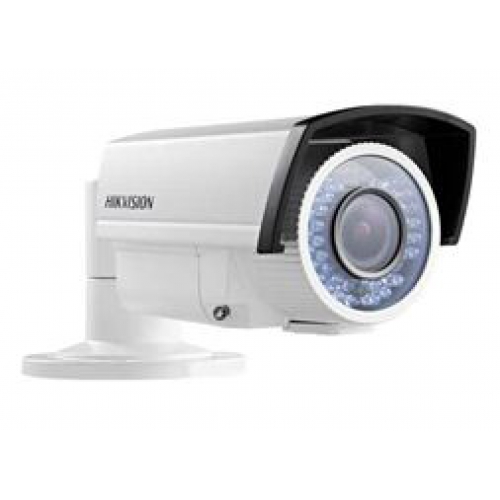

HIKVISION DS-2CE15A2P(N)-VFIR3
DS-2CE15A2P(N)-VFIR3
Camera
Image Sensor: 1/3” DIS
Signal System: PAL/NTSC
Effective Pixels: 976(H)×496(V)
Min. Illumination: 0.1Lux @ (F1.2,AGC ON),0 Lux with IR
0.14Lux @ (F1.4,AGC ON),0 Lux with IR
Shutter Time: 1/50(1/60)s to 1/100,000s
Lens: 2.8-12 mm @ F1.4
Angle of view: 80° - 27.2°
Lens Mount: φ14
Adjustment Range: Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°
Day& Night: IR cut filter with auto switch
Horizontal Resolution: 700 TVL
Synchronization: Internal Synchronization
Video Output: 1Vp-p Composite Output (75Ω/BNC)
S/N Ratio: More than 62 dB
BLC: On
General
Operating Conditions: -40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)
Power Supply: 12 V DC±10%
Power Consumption: Max. 4 W(Max. 5 W with IR cut filter on)
Weather Proof: IP66
IR Range: Approx 30 to 40 meters
Dimension: 105 × 86.9 × 267.2mm(φ 4.13” x 3.42” x 10.52”)
Weight: 1350g (2.97 lbs)
